Monolite Spray Working Lining

Monolite Spray Working Lining

Monolite is a basic sprayed tundish coating for the protection of permanent linings of continuous casting tundishes.

As important as it is to have a tundish spray material of high integrity it is equally important to have available the means of applying it to the permanent tundish lining.

This material is applied by a specially designed spray machine in which water is mixed with dry materials and made into a free flowing homogeneous slurry. This fully wetted slurry is then pumped to a spray nozzle where it is atomised with air and sprayed effectively without rebound loss.

Enquire Now

Design Features

Monolite Spray Working Lining

  • Faster tundish turn-round times.
  • No rebound.
  • Increased life of safety lining.
  • High level of insulation.
  • Good deskulling.
  • Contoured lining thickness for even longer sequence casting - Slag zone thickness can be easily increased if required.
  • Suitable for both HOT and COLD practice.
  • Monocon tundish spray machine.
  • Range of compositions to suit every requirement.

Application

  • MONOLITE is a sprayed, lightweight magnesia based coating which protects the permanent lining of continuous casting tundishes. Since MONOLITE is sprayed, not gunned, rebound loss is eliminated.
  • After drying, MONOLITE gives good mechanical resistance and high insulation values together with excellent erosion resistance and deskulling properties.
  • MONOLITE is equally suited to both hot and cold tundish practice.

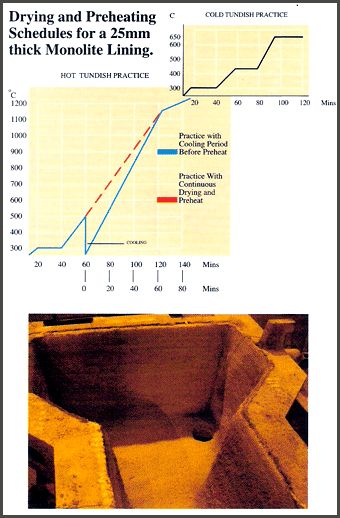

MONOLITE Drying/Pre-heating schedule

As the MONOLITE lining can be used in a HOT or COLD tundish environment, the drying and pre-heating schedule can be adjusted accordingly. In both drying and pre-heating, care should be taken to apply heat evenly and without flame impingement directly onto the sprayed surface.

Monocon monlite 1
